DHY22KSE

DHY22KSE

SPECIFICATIONS

Model DHY22KSE
Power Output kW/kVA Prime Power 18kW/20kVA Stand By Power 20kW/22kVA
Start Electric
Engine Displacement CC 2540cc
Engine Make Hyundai
Engine Type HY490 diesel engine
Fuel Tank Capacity 77.5 Litres
Fuel Type Diesel
Features Silenced Weather Proof Canopy
Noise Level in dB(A) 67dB(A) @ 7m
Run Time 23 Hours @ 50% Load
Voltage 50Hz 240/415

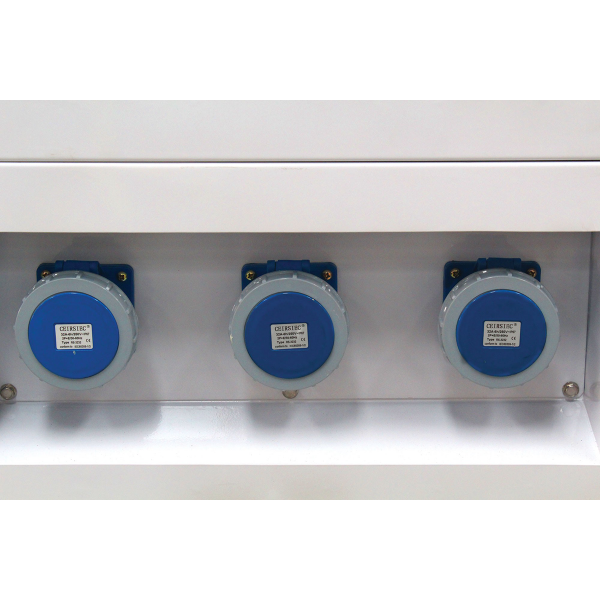

Connection Method Hardwire / 1 x 32Amp 3 Phase 1 x 15Amp Single Phase IP67 Outlets
Warranty 1 Year
Dimensions L x W x H (mm) 1900 x 900 x 1100
Weight 760 kg
SKU: DHY22KSE Category:

Description

The Hyundai DHY22KSE is a three phase diesel generator with a maximum output of 22kVA. Designed for domestic or professional use, the DHY22KSE is powered by a 21hp HY490 diesel engine and is equipped an AVR alternator to produce clean energy. This means that any sensitive electronic equipment, such as televisions, PCs and laptops, can safely be powered by the DHY22KSE.

The DHY22KSE can be started manually by using the key, or connected to an ATS (Automatic Transfer Switch) system. An ATS system will automatically detect a loss of power from the mains, turn your DHY22KSE on automatically, and then turn it off again when power returns from the mains.

Housed in a weather-proof silenced canopy, the DHY22KSE produces only 65dB @ 7 metres which makes it a quiet standby generator which won’t interrupt you at home or work.

The DHY22KSE benefits from being an economical diesel generator, capable of running on red diesel which is significantly cheaper than road diesel and is safer to store than petrol.

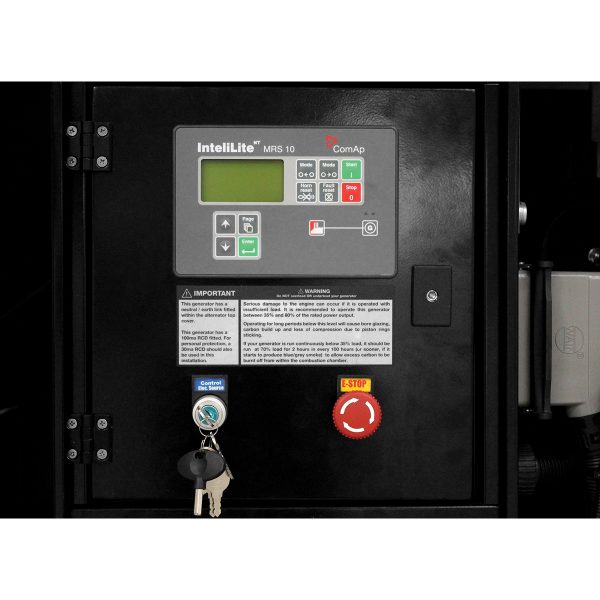

An MRS 10 Intelilite control panel with its intuitive interface gives the user an unprecedented level of control over numerous variables including the voltage and current, as well as oil pressures and the engine running hours.

Running at 1500rpm, the engine is stressed less than in 3000rpm generators and this helps extend the lifespan of the machine if properly serviced.

Please contact Genelite on 1300 305 912 for more details on this model, and other generators in our range.
